The tee is a fitting for pipeline systems, primarily used to alter fluid direction and connect the main pipeline with branch pipelines. It is a chemical pipe fitting with three openings—one inlet and two outlets, or two inlets and one outlet—applied at the junction point of three identical or different pipelines.
Classification by Pipe Diameter

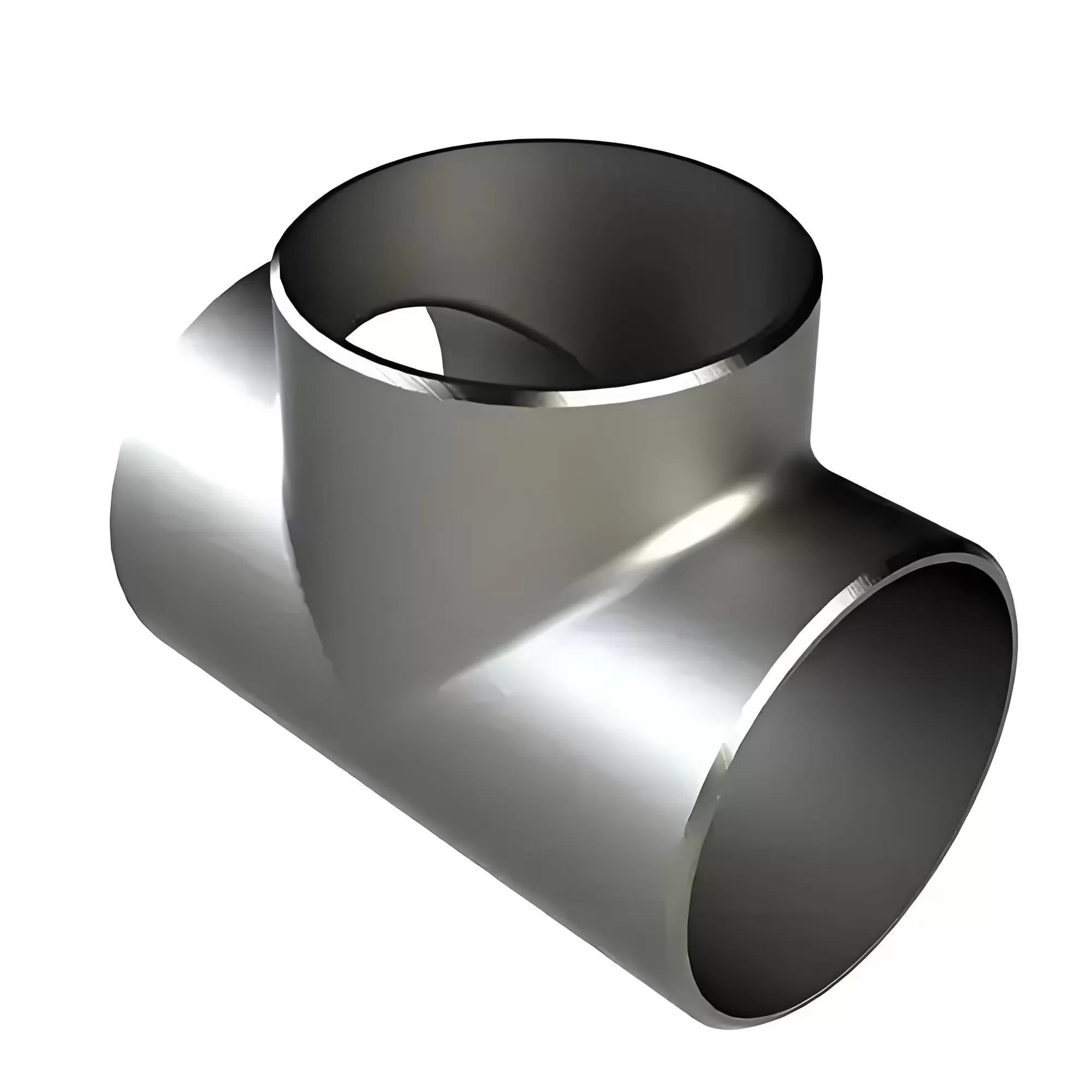

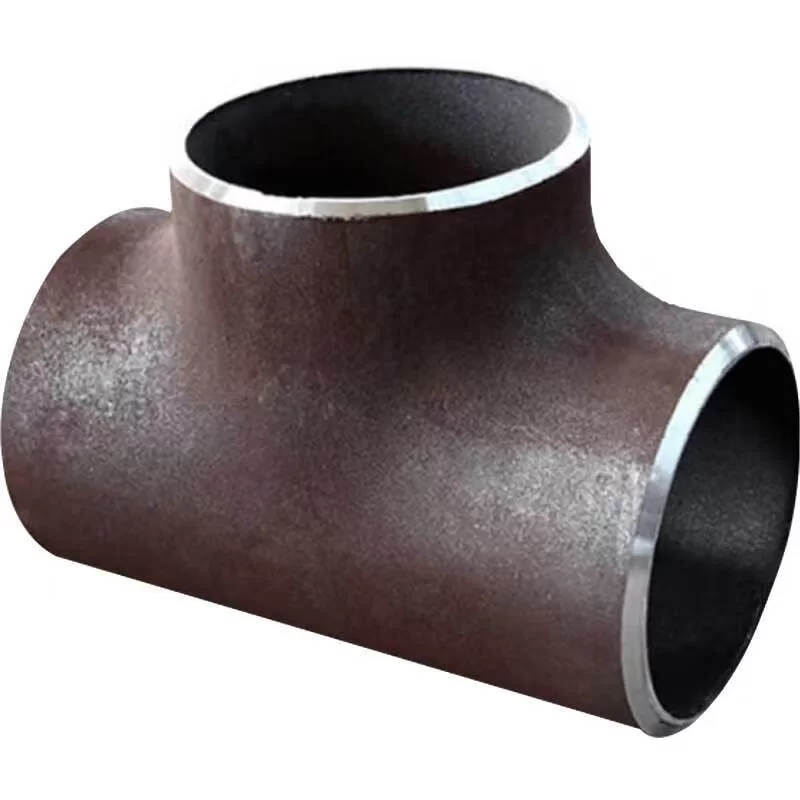

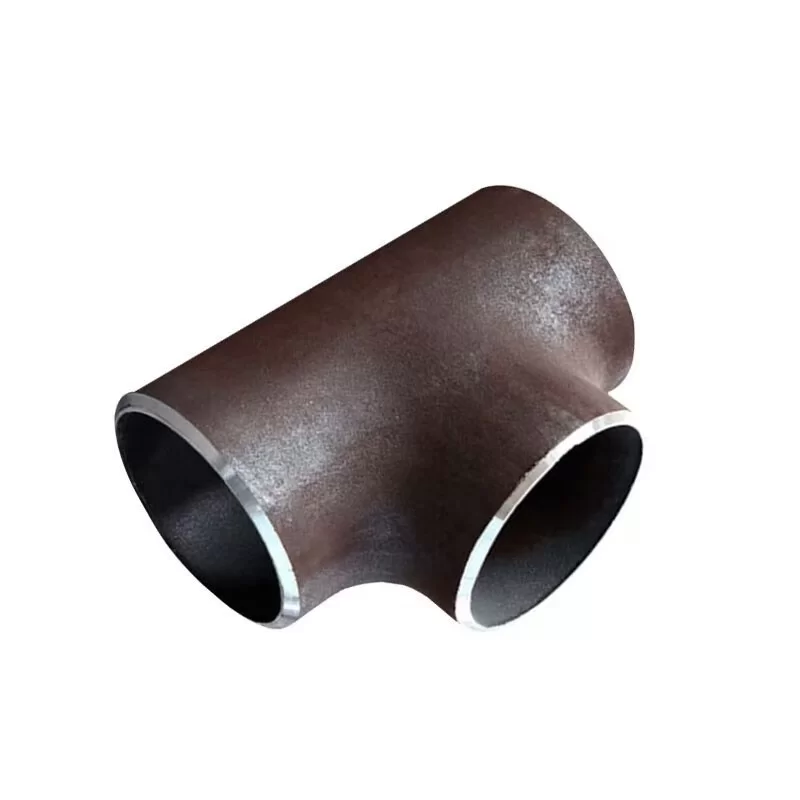

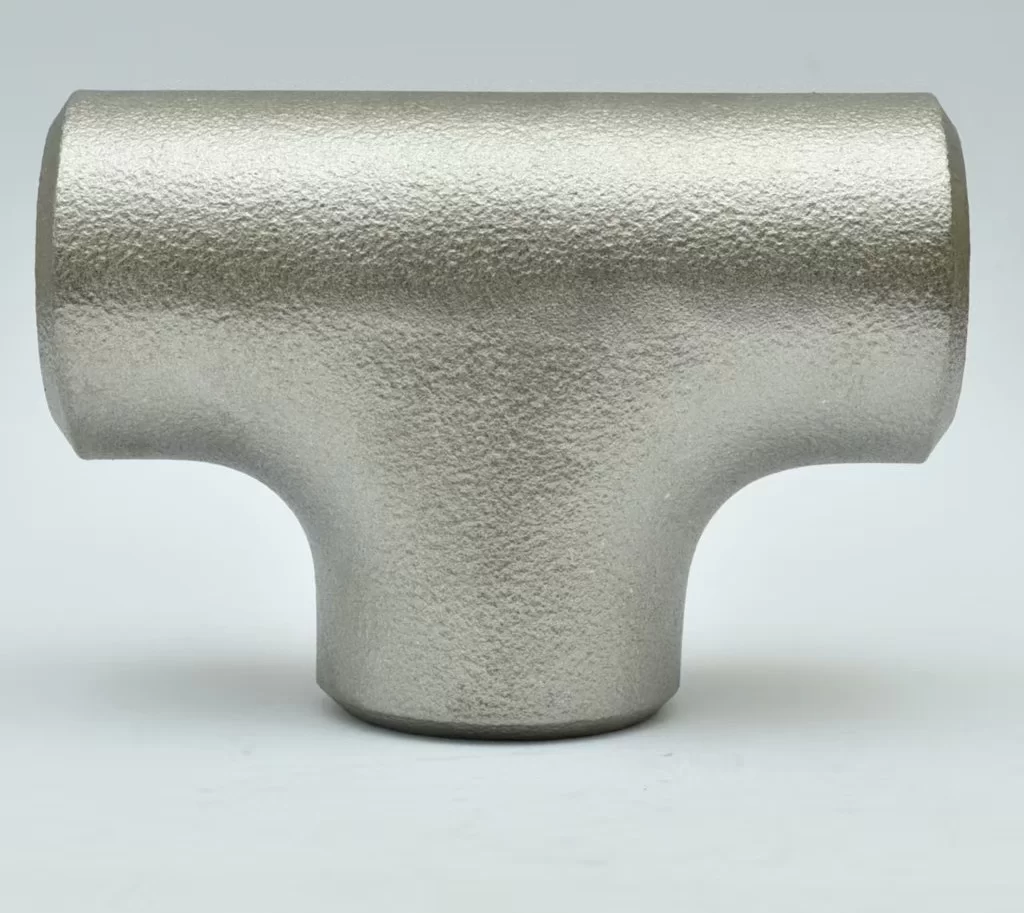

●Equal tee: All nozzle end dimensions are identical.

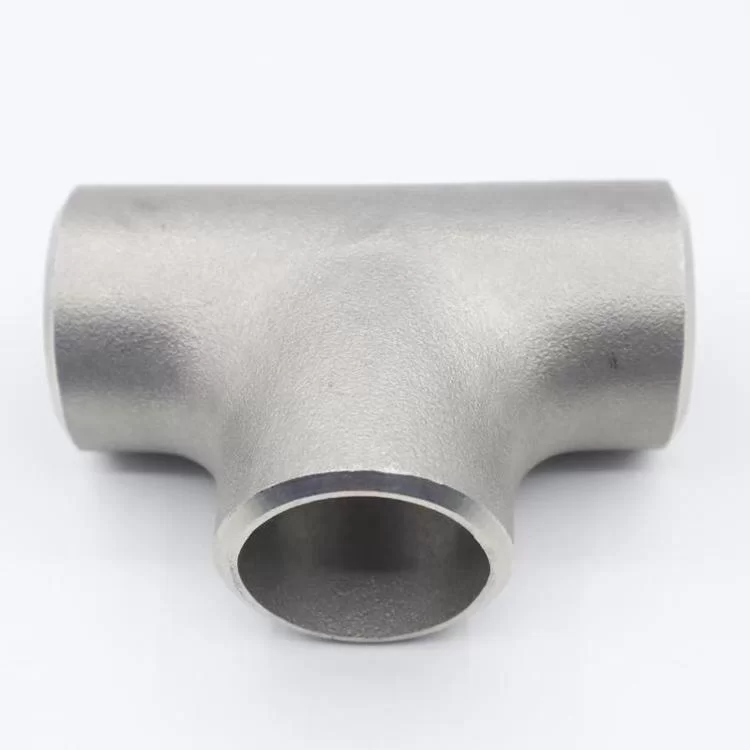

●Reducing tee: The nozzle dimensions of the main pipe are consistent, while the branch pipe nozzle dimension is smaller than that of the main pipe.
Classification by Manufacturing Process
●Hydraulic expanded tee: A forming process that creates the branch pipe through axial compensation expansion of metal materials. It enables one-piece forming with high production efficiency, suitable for manufacturing standard wall thickness tees with DN ≤ 400.
●Hot-formed tee: Formed via radial compression of the pipe blank and stretching of the branch pipe section. Heating prior to pressing reduces the required equipment tonnage, and it offers wide material adaptability—ideal for large-diameter and thick-walled tees.
Classification by Material
●Carbon steel, cast steel, alloy steel, stainless steel, copper, aluminum alloy, plastic, etc.
Classification by Connection Method

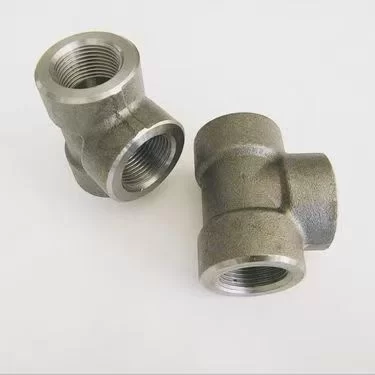

●Threaded tee
●Flanged tee
●Welded tee (including butt weld tee and socket weld tee)
Classification by Shape
●T-type tee

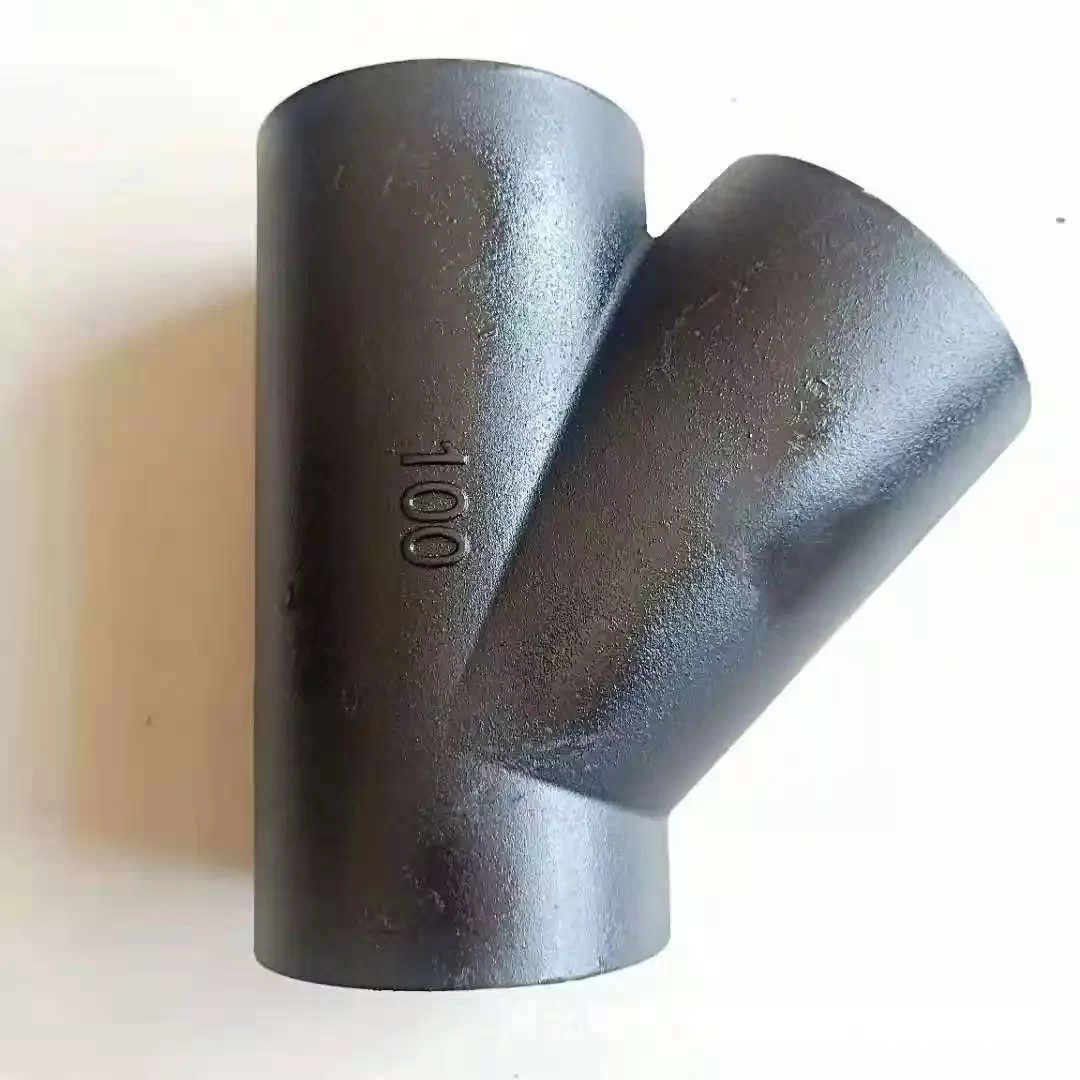

●Y-type tee
●Skew tee (angle tee)
Classification by Manufacturing Standard
●American Standard (ASME), Chemical Industry Standard (HG/T), Electric Power Standard (DL/T), Marine Standard (CB/T), German Standard (DIN), Russian Standard (GOST), Chinese National Standard (GB/T), Japanese Standard (JIS), etc.
Application Scenarios
●Branching or converging of pipeline systems in chemical, petroleum, electric power, and other industries.
●Layout of water supply, drainage, and gas distribution pipelines (including residential, commercial, and industrial gas pipelines).
